Complete chemistry
Include solvents, pH, concentration, oxidisers and cleaning agents.
Application guide
Chemical Filtration Media
Compatibility-led filter pads and cartridges for catalyst removal, clarification, colour reduction and polishing in chemical process streams.
Process requirements
What the filtration duty must achieve
Chemical filtration duties vary from removal of reactor solids and catalysts to polishing before packaging or protection of downstream equipment. A media recommendation begins with complete fluid composition—including minor solvents, oxidisers and cleaning chemicals—because compatibility can change sharply with concentration and temperature.
Viscosity, solids abrasiveness, particle shape and valuable-product recovery affect whether a pad, wound depth cartridge, spun cartridge, pleated element or reusable stainless-steel filter is most appropriate.
Process design
A staged filtration approach
Start with bulk solids removal where needed, then use a depth stage for variable fine-particle loading. Activated carbon pads can be trialled where a confirmed adsorbable colour or odour compound is present. Pleated cartridges provide polishing, while stainless-steel elements suit selected high-temperature, high-pressure or reusable duties.
For batch processes, define endpoint by filtrate quality and pressure/flow. For continuous service, include duty/standby capacity and a safe change-out or backwash strategy.
Selection variables
Data that changes media performance
02
Temperature
Compatibility and viscosity can change at process temperature.
03
Solids character
Hard catalyst, soft agglomerates and gels load media differently.
04
Pressure profile
Record clean and terminal differential pressure.
05
Product recovery
Assess hold-up, flushing and valuable solids or filtrate recovery.
06
Disposal or cleaning
Select single-use depth media or validated reusable metal elements.
Sri Bharathi portfolio
Related products for the filtration train
Technical questions
Application FAQs
How is chemical compatibility confirmed?
Review every wetted material against the full formulation at actual temperature and concentration, then trial where interaction data is uncertain.
When is activated carbon useful?
When the target dissolved compound is demonstrably adsorbed under the process pH, temperature, concentration and contact time.

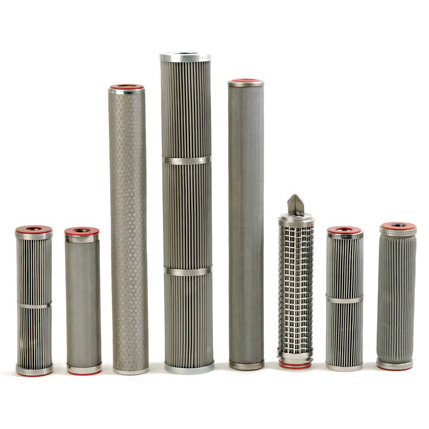

Why select stainless steel?
It may suit temperatures, pressures, solvents or cleaning cycles that challenge polymer media, provided the selected alloy resists corrosion.
What causes short cartridge life?
High solids, gels, precipitation after cooling, too-fine prefiltration, excessive flux or chemical swelling can all contribute.
Application support
Discuss the full process, not an isolated micron number
Share feed quality, temperature, viscosity, solids, batch volume, existing equipment, desired result and required quality documents so an appropriate trial sequence can be proposed.
