01
PP pleated cartridges
Gradient-density microfiber media with high pleated area for compatible critical liquid duties.
PP pleated →Liquid and air filtration
Industrial Filter Cartridges

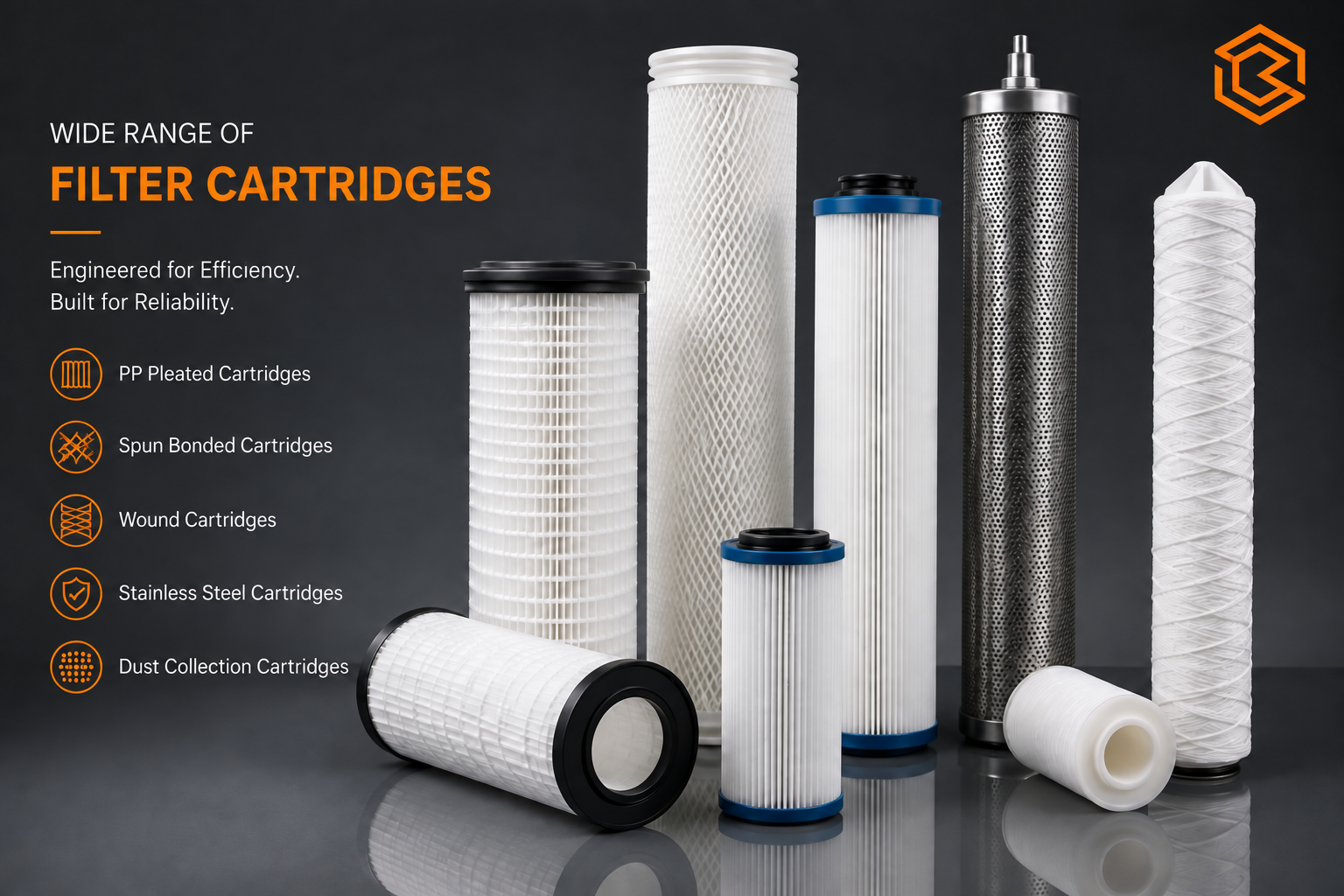

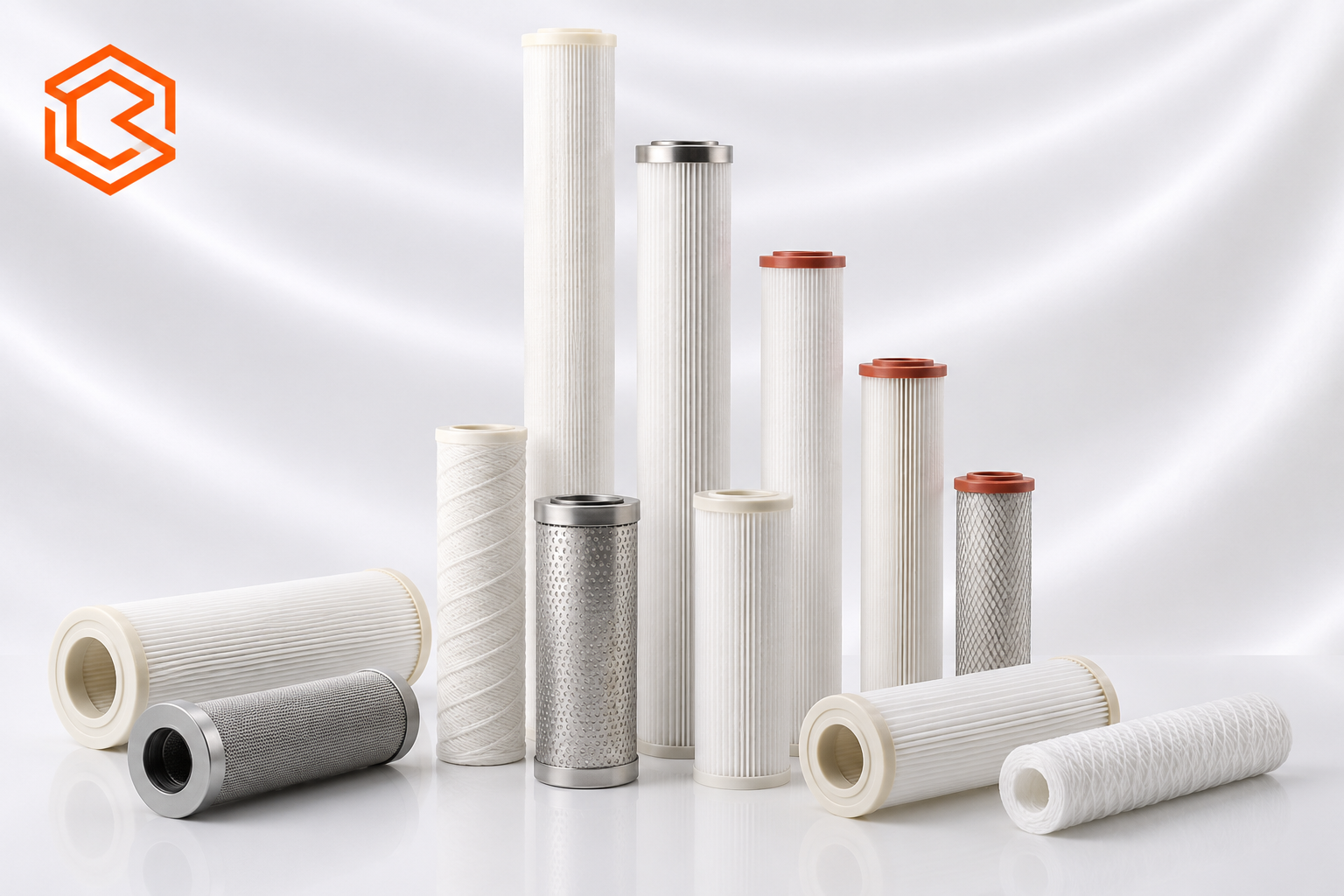

Sri Bharathi supplies pleated, spun-bonded, wound, stainless-steel and dust-collection filter cartridges for compatible process duties and housings.
Portfolio
Liquid and dust cartridges by construction
02
Spun-bonded cartridges
One-piece 100% polypropylene depth media with progressive outside-to-inside retention.
Spun bonded →03
Wound cartridges
Controlled yarn winding around PP or stainless-steel cores for robust depth filtration.
Wound cartridges →04
Stainless-steel cartridges
Reusable mesh, sintered or fibre-metal elements for high-temperature and differential-pressure duties.
Stainless steel →05
Dust-collection cartridges
Pleated polyester media with application-specific coatings for industrial air filtration.
Dust collection →06
Application matching
Compatibility, retention, pressure drop, geometry and cleaning determine the correct construction.
Request selection support →Selection framework
Do not compare cartridges by micron label alone
Nominal and absolute ratings describe different performance claims and require a stated test method. Pleated surface area, depth gradient, fibre diameter, pore stability and the incoming particle distribution all influence real separation performance.
Confirm cartridge length, outside and inside diameter, end connection, gasket or O-ring material, flow direction, housing fit, operating temperature, differential pressure and sanitisation or cleaning method. Fluid compatibility must include every wetted component—not only the filter medium.
Questions engineers ask
Cartridge selection FAQs
What is the difference between pleated and depth cartridges?
Pleated cartridges use folded media for high area and are often selected for defined polishing duties. Spun and wound depth cartridges distribute solids through a thicker matrix and can suit higher dirt loads.
What does DOE mean?
Double open end describes a cartridge open at both ends, normally sealed in the housing using separate gaskets or knife-edge arrangements.
Can nominal and absolute micron ratings be compared directly?
No. The claim must include the efficiency definition and test method. A nominal label without test context is not equivalent to an absolute-rated element.
When should stainless steel be selected?
Consider it where temperature, chemical exposure, differential pressure, backwashing or reuse exceeds the practical limits of polymeric media—subject to metallurgy and pore validation.
Application support
Match the cartridge to the housing and process
Share housing geometry, current end configuration, seal material, fluid, temperature, flow, differential pressure, solids load and target retention.
